Mixers & Agitators
Innovatively designed Agitators to meet most stringent requirements from any industry ranging from Pitched Turbine, Ruston, Paddle, Anchor, Helix, Hydrofoil and other special designs.
Salient Features:
- Proven Energy Efficient Design
- Quality Engineered Product
- Right Mixing for Right Application
- Compact & Robust
- Low maintenance
- Double Bearing Housing of Proprietary Design
- Longer Gear Life
- Greater Shaft stability
- Lower Shaft Run Out
What you need to know
Generally for shaft lengths ≥ 2000 mm High Efficiency Impellers
Rating : 0.18 KW onwards
RPM : Designed to meet customer requirement
Gearbox: Helical Type / Worm Type
MOC : Carbon Steel with Epoxy Painting, SS-304/L, SS-316/L, Rubber/FRP Lined, Duplex, Hastalloy, Bronze, etc.
Series : TD-H / TD-W / TS-H / TS-W
Impeller Types: 3/4/6/8 Bladed – Turbine, Hydrofoil, Ruston, etc. Radial or Axial type. Open, Semi-open, Flat, Inclined, Curved, Bucket, etc. Blade types.

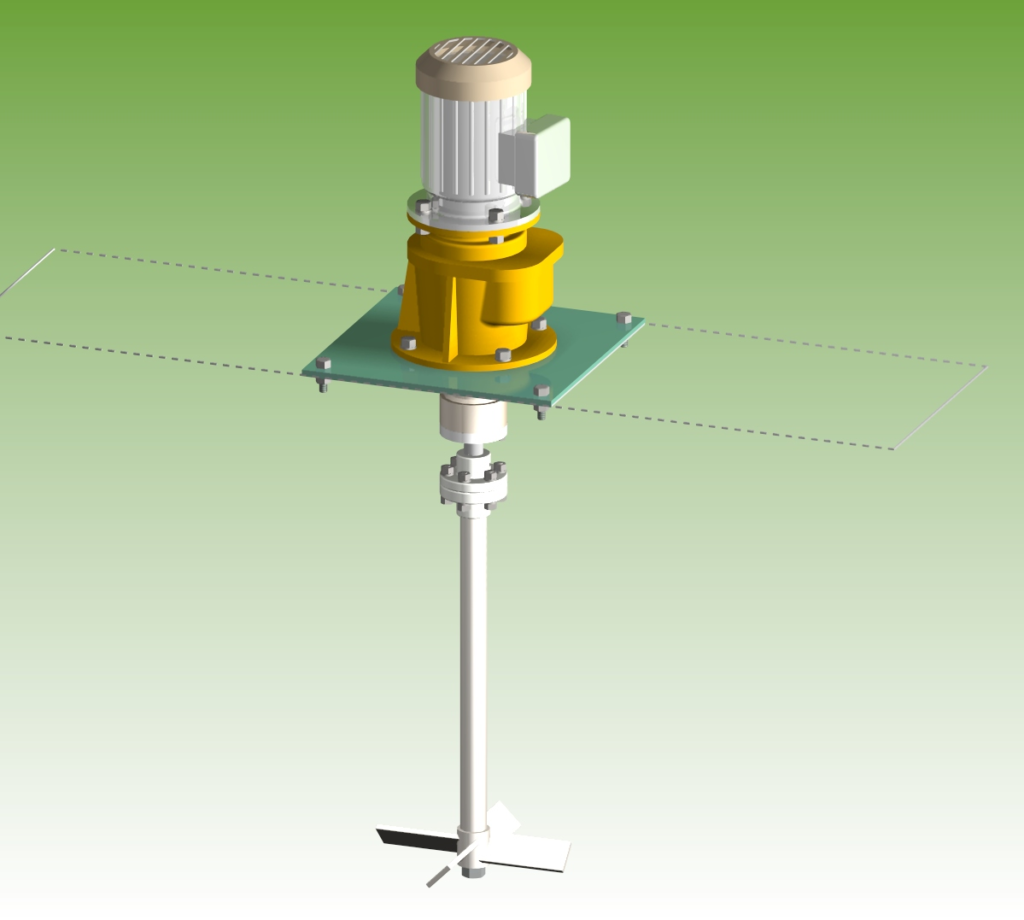

Agitator (Turbine, Hydrofoil, Propeller, others)
Static Mixer
Static mixer is used to blend “online” low viscosity liquids together. Static mixer transfers fluids while blending them. For liquids up to 6000 cps of viscosity, with no or very few solid particles.
Useful in Water treatment, food processing, chemistry, petrochemistry.
